AXK820145V Narrow Pitch Connectors

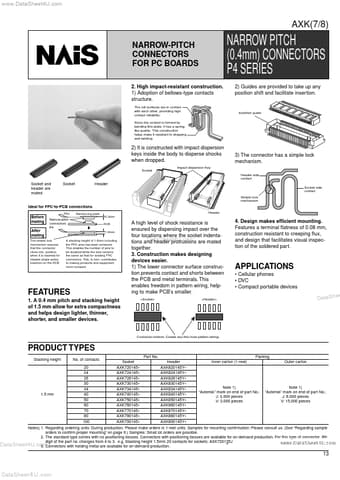

www.DataSheet4U.com NARROW-PITCH CONNECTORS FOR PC BOARDS AXK(7/8) NARROW PITCH (0.4mm) CONNECTORS P4 SERIES Socket and header are mated Socket Header Ideal for FPC-to-PCB connections Before mating After mating FPC Narrow-pitch connectors P4 Reinforcing plate 0.3mm PCB 1.8mm The simple lock mechanism ensures that the connector clicks into position when it is inserted for reliable single-action insertion on the PCB. A stacking height of 1.8mm including the FPC area has been achieved. T.

AXK820145V Features

* 1. A 0.4 mm pitch and stacking height of 1.5 mm allow for extra compactness and helps design lighter, thinner, shorter, and smaller devices. 2. High impact-resistant construction. 1) Adoption of bellows-type contacts structure. The roll surfaces are in contact with each other, providing high contac
