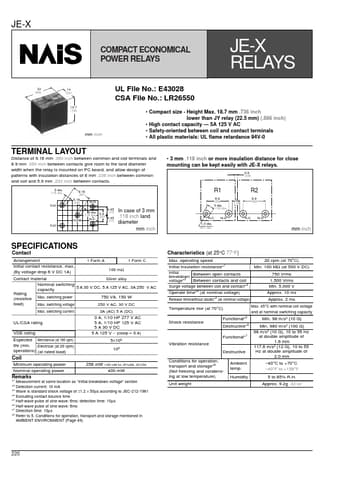

JE1aXN-DC12V-H COMPACT ECONOMICAL POWER RELAYS

JE-X COMPACT ECONOMICAL POWER RELAYS JE-X RELAYS 22 .866 14 .551 UL File No.: E43028 CSA File No.: LR26550 Compact size - Height Max. 18.7 mm .736 inch lower than JY relay (22.5 mm) (.886 inch) High contact capacity 5A 125 V AC Safety-oriented between coil and contact terminals All plastic materials: UL flame retardance 94V-0 18.7 .736 mm inch TERMINAL LAYOUT Distance of 9.16 mm .360 inch between common and coil terminals and 8.9 mm .350 i.
