TX2SS-L-xx, TX2SA-L-xx Datasheet - NAIS

TX2SA-L-xx_NAIS.pdf

This datasheet PDF includes multiple part numbers: TX2SS-L-xx, TX2SA-L-xx. Please refer to the document for exact specifications by model.

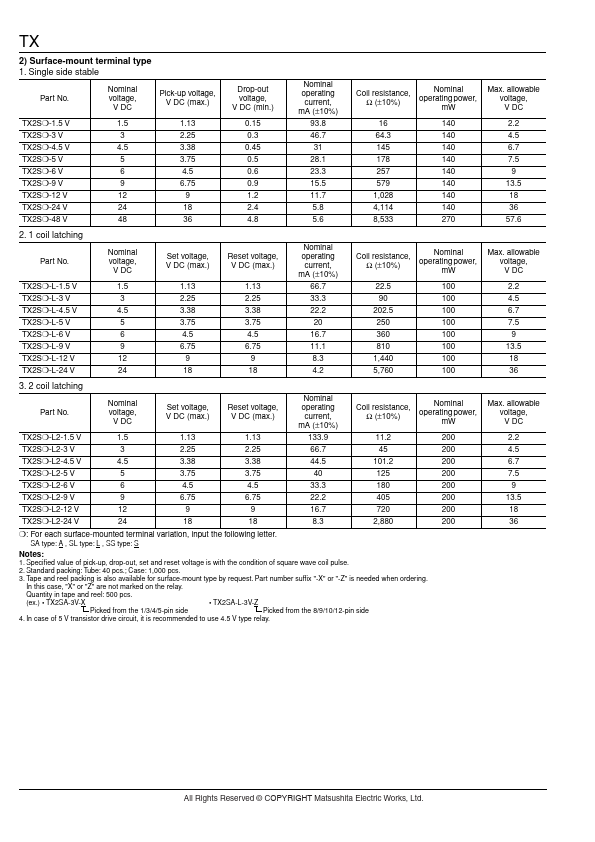

TX2SS-L-xx Datasheet Preview Page 2 TX2SS-L-xx Datasheet Preview Page 3

Datasheet Details

Part number:

TX2SS-L-xx, TX2SA-L-xx

Manufacturer:

NAIS

File Size:

215.86 KB

Description:

(tx series) 2a capacity relay.

Note:

This datasheet PDF includes multiple part numbers: TX2SS-L-xx, TX2SA-L-xx.
Please refer to the document for exact specifications by model.

TX2SS-L-xx, TX2SA-L-xx, (TX Series) 2A Capacity Relay

TX2SS-L-xx Features

* Breakdown voltage between contacts and coil: 2,000 V

* Surge withstand between contacts and coil: 2,500 V

* High contact capacity: 2 A 30 V DC

* Surface-mount type available mm inch SPECIFICATIONS Contact Arrangement Initial contact resistance, max. (By voltage dr
