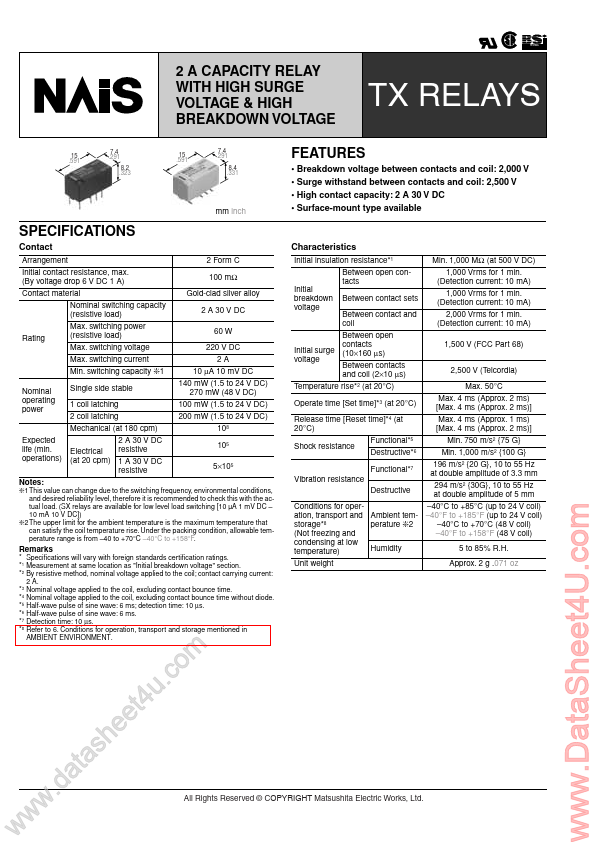

datasheet Preview Page 1 from Datasheet4u.com

TX2SS-L2-xx, TX2SA-L-xx (TX Series) 2A Capacity Relay

TESTING 2 A CAPACITY RELAY WITH HIGH SURGE VOLTAGE & HIGH BREAKDOWN VOLTAGE 15 .591 7.4 .291 8.2 .323 15 .591 7.4 .291 8.4 .331 TX RELAYS .

TX2SA-L-xx_NAIS.pdf

TX2SS-L2-xx Datasheet Preview — This datasheet PDF includes multiple part numbers: TX2SS-L2-xx, TX2SA-L-xx. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TX2SS-L2-xx, TX2SA-L-xx

Manufacturer:

NAIS

File Size:

215.86 KB

Description:

(TX Series) 2A Capacity Relay

Note:

This datasheet PDF includes multiple part numbers: TX2SS-L2-xx, TX2SA-L-xx.
Please refer to the document for exact specifications by model.

Features

* Breakdown voltage between contacts and coil: 2,000 V
* Surge withstand between contacts and coil: 2,500 V
* High contact capacity: 2 A 30 V DC
* Surface-mount type available mm inch SPECIFICATIONS Contact Arrangement Initial contact resistance, max. (By voltage dr
