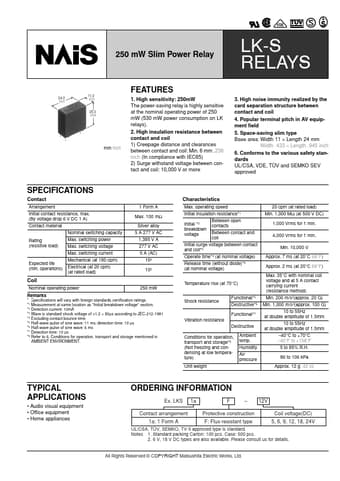

250 mW Slim Power Relay
VDE LK-S
LK-S RELAYS
FEATURES
24.0 .945
11.0 .433
1. High sensitivity: 250mW The power-saving relay is highly sensitive
3. High noise immunity realized by the card separation structure between
25.0
at the nominal operating power of 250
contact and coil
.984 mW (530 mW power consumption on LK 4. Popular terminal pitch in AV equip-
relays).
ment field
mm inch
2. High insulation resistance between contact and coil 1) Creepage distance and clearances between contact and coil: Min. 6 mm .236 inch (In compliance with IEC65) 2) Surge withstand voltage between contact and coil: 10,000 V or more
5. Space-saving slim type Base area: Width 11 × Length 24 mm
Width .433 × Length .945 inch
6.
