NCE70R540K, NCE70R540I - N-Channel Super Junction Power MOSFET

NCE Power Semiconductor

The NCE70R540K by NCE Power Semiconductor is a N-Channel Super Junction Power MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

NCE70R540K N-Channel Super Junction Power MOSFET by NCE Power Semiconductor - Datasheet Preview — Official preview page of the NCE70R540K N-Channel Super Junction Power MOSFET datasheet (NCE Power Semiconductor).

Datasheet Details

Part number	NCE70R540K, NCE70R540I
Manufacturer	NCE Power Semiconductor
File Size	778.93 KB
Description	N-Channel Super Junction Power MOSFET
Datasheet	NCE70R540I-NCEPowerSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: NCE70R540K, NCE70R540I. Please refer to the document for exact specifications by model.

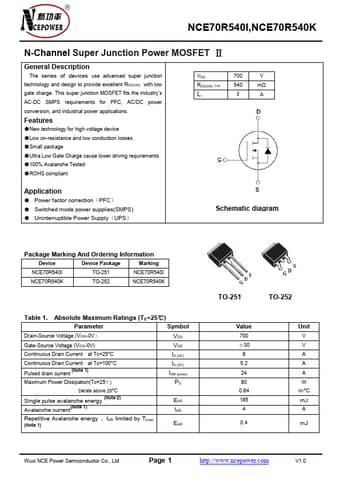

Additional preview pages of the NCE70R540K datasheet.

NCE70R540K Product details

Description

The series of devices use advanced super junction technology and design to provide excellent RDS(ON) with low gate charge.

Features

New technology for high voltage device.
Low on-resistance and low conduction losses.
Small package.
Ultra Low Gate Charge cause lower driving requirements.
100% Avalanche Tested.
ROHS compliant VDS RDS(ON) TYP. ID 700 540 8 V mΩ A.
