NL2432AC35-06 - TFT Color LCD Module

NEC Electronics

📥 Download Datasheet

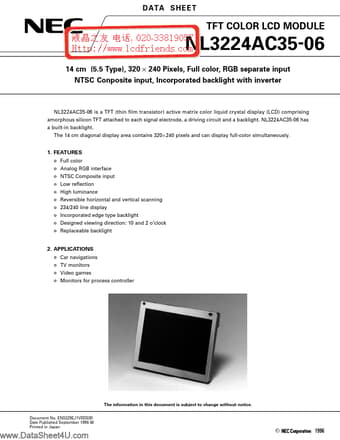

NL2432AC35-06 Datasheet Preview — Preview of NL2432AC35-06 PDF

Datasheet Details

Part number	NL2432AC35-06
Manufacturer	NEC Electronics
File Size	190.78 KB
Description	TFT Color LCD Module
Datasheet	NL2432AC35-06_NECElectronics.pdf

NL2432AC35-06 Product details

Description

CN1 Pin No.10 12 14 16 21 22 18 Symbol CIN RIN GIN BIN VOUT HOUT YS I/O Input Input Input Input Output Output Input Logic Nega. Nega. Description Composite signal input (1.0 VP-P , 75 Ω ) Red video signal input (0.7 VP-P , 75 Ω) Green video signal input (0.7 VP-P, 75 Ω) Blue video signal input (0.7 VP-P , 75 Ω) Horizontal synchronous signal output (CMOS level) Vertical synchronous signal output (CMOS level) Composite / RGB select signal @ H or open

Features

Full color Analog RGB interface NTSC Composite input Low reflection High luminance Reversible horizontal and vertical scanning 234/240 line display Incorporated edge type backlight Designed viewing direction: 10 and 2 o'clock Replaceable backlight 2.
