NL2432DR22-11B

LCD DOT MATRIX GRAPHIC DISPLAY MODULE

NEC Electronics

NL2432DR22-11B Features

* Front light type with four LEDs (Light Emitting Diodes) Include Touch panel Recommended LCD controller: part no. S1L50282F23k100, NEC corp. High contrast ratio 6-bit digital RGB signals 3. APPLICATIONS PDA 4. STRUCTURE AND FUNCTION DataSheet4U.com A reflective TFT (thin film transistor) color LCD mo

NL2432DR22-11B General Description

The NL2432DR22-11B is a TFT (thin film transistor) active matrix color liquid crystal display (LCD) comprising an amorphous silicon TFT attached to each signal electrode, a driving circuit. This module is consist of LCD panel, Driver, Front light and Touch panel The 8.9 cm (3.5 Type) diagonal displa.

NL2432DR22-11B Datasheet (527.62 KB)

NL2432DR22-11B Datasheet Preview — Preview of NL2432DR22-11B PDF

Datasheet Details

Part number:

NL2432DR22-11B

Manufacturer:

NEC Electronics

File Size:

527.62 KB

Description:

Lcd dot matrix graphic display module.

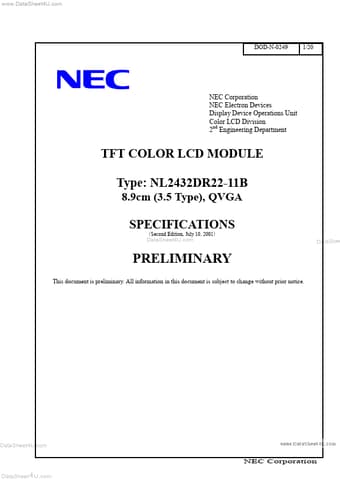

www.DataSheet4U.com DOD-N-0249 1/20 NEC Corporation NEC Electron Devices Display Device Operations Unit Color LCD Division 2nd Engineering Departme.
