2SK1824, N-Channel MOSFET

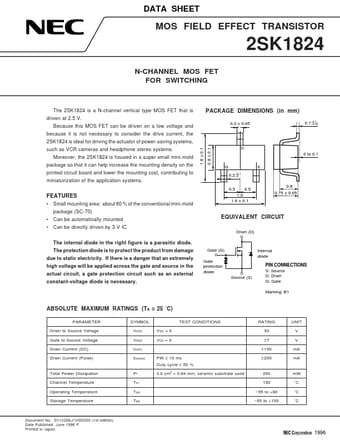

DATA SHEET MOS FIELD EFFECT TRANSISTOR 2SK1824 N-CHANNEL MOS FET FOR SWITCHING The 2SK1824 is a N-channel vertical type MOS FET that is driven at 2.

datasheet Preview Page 1 from Datasheet4u.com

2SK1824_NEC.pdf

2SK1824 Datasheet Preview — Preview of 2SK1824 PDF

Datasheet Details

Part number:

2SK1824

Manufacturer:

NEC

File Size:

63.31 KB

Description:

N-Channel MOSFET

Features

* Small mounting area: about 60 % of the conventional mini-mold package (SC-70)
* Can be automatically mounted
* Can be directly driven by 3-V IC 1.0 1.6 ± 0.1 EQUIVALENT CIRCUIT Drain (D) The internal diode in the right figure is a parasitic diode. The protection diode is

Applications

* of a device depend on its quality grade, as indicated below. Customers must check the quality grade of each device before using it in a particular application. Standard: Computers, office equipment, communications equipment, test and measurement equipment, audio and visual equipment, home electronic
