2SK3430, N-Channel MOSFET

PRELIMINARY DATA SHEET MOS FIELD EFFECT TRANSISTOR 2SK3430 SWITCHING N-CHANNEL POWER MOS FET INDUSTRIAL USE ORDERING INFORMATION PART NUMBER 2SK3430.
The 2SK3430 is N-channel MOS Field Effect Transistor designed for high current switching applications. Super low on-state resistan.

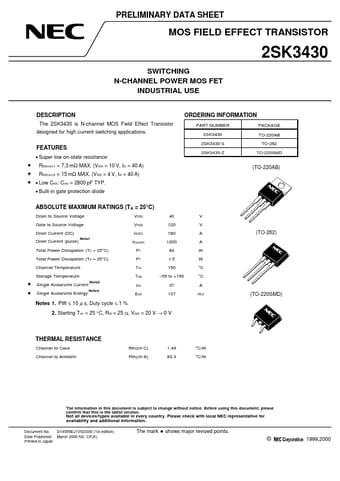

datasheet Preview Page 1 from Datasheet4u.com

2SK3430_NEC.pdf

2SK3430 Datasheet Preview — Preview of 2SK3430 PDF

Datasheet Details

Part number:

2SK3430

Manufacturer:

NEC

File Size:

48.58 KB

Description:

N-Channel MOSFET

Features

* Super low on-state resistance: 5 5 RDS(on)1 = 7.3 mΩ MAX. (VGS = 10 V, ID = 40 A) RDS(on)2 = 15 mΩ MAX. (VGS = 4 V, ID = 40 A)
* Built-in gate protection diode (TO-220AB) 5
* Low Ciss: Ciss = 2800 pF TYP. ABSOLUTE MAXIMUM RATINGS (TA = 25°C) Drain to Source Voltage Gate
