2SK3431 - N-Channel MOSFET

2SK3431 Description

PRELIMINARY DATA SHEET MOS FIELD EFFECT TRANSISTOR 2SK3431 SWITCHING N-CHANNEL POWER MOS FET INDUSTRIAL USE ORDERING INFORMATION PART NUMBER 2SK3431.
The 2SK3431 is N-channel MOS Field Effect Transistor designed for high current switching applications. Super low on-state resistan.

2SK3431 Features

* Super low on-state resistance: RDS(on)1 = 5.6 mΩ MAX. (VGS = 10 V, ID = 42 A) 5 RDS(on)2 = 8.9 mΩ MAX. (VGS = 4 V, ID = 42 A)
* Built-in gate protection diode 5
* Low Ciss: Ciss = 6100 pF TYP. (TO-220AB) ABSOLUTE MAXIMUM RATINGS (TA = 25°C) Drain to Source Voltage Gate to

📥 Download Datasheet

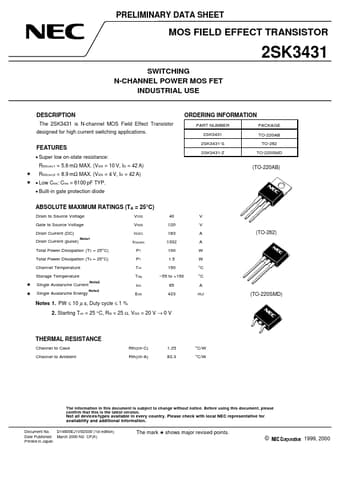

Preview of 2SK3431 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SK3431
Manufacturer
NEC
File Size
48.61 KB
Datasheet
2SK3431_NEC.pdf
Description
N-Channel MOSFET
