2SK3433 - N-Channel MOSFET

2SK3433 Description

PRELIMINARY DATA SHEET MOS FIELD EFFECT TRANSISTOR 2SK3433 SWITCHING N-CHANNEL POWER MOS FET INDUSTRIAL USE ORDERING INFORMATION PART NUMBER 2SK3433.
The 2SK3433 is N-channel MOS Field Effect Transistor designed for high current switching applications. Super low on-state resistan.

2SK3433 Features

* Super low on-state resistance: RDS(on)1 = 26 mΩ MAX. (VGS = 10 V, ID = 20 A) 5 RDS(on)2 = 41 mΩ MAX. (VGS = 4.0 V, ID = 20 A)
* Low Ciss: Ciss = 1500 pF TYP.
* Built-in gate protection diode (TO-220AB) ABSOLUTE MAXIMUM RATINGS (TA = 25°C) Drain to Source Voltage Gate to S

📥 Download Datasheet

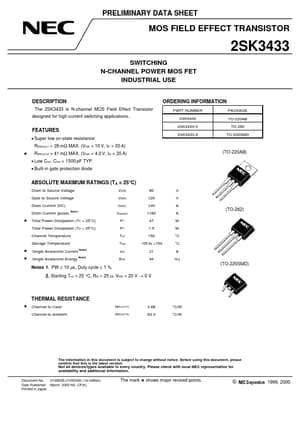

Preview of 2SK3433 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SK3433
Manufacturer
NEC
File Size
48.29 KB
Datasheet
2SK3433_NEC.pdf
Description
N-Channel MOSFET
