2SK3713 - SWITCHING N-CHANNEL POWER MOSFET

Product Overview

NEC

📥 Download Datasheet

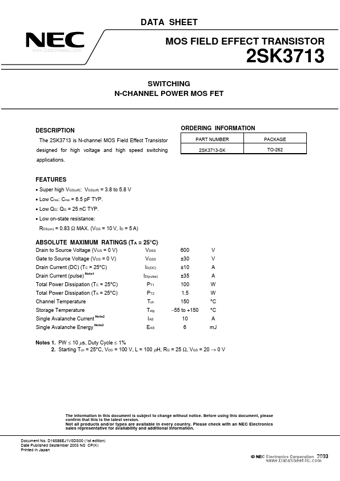

2SK3713 SWITCHING N-CHANNEL POWER MOSFET by NEC - Datasheet Preview — Datasheet preview – 2SK3713

Datasheet Details

Part number	2SK3713
Manufacturer	NEC
File Size	158.59 KB
Description	SWITCHING N-CHANNEL POWER MOSFET
Datasheet	2SK3713 Datasheet
Additional preview pages of the 2SK3713 datasheet.

Product details

Description

The 2SK3713 is N-channel MOS Field Effect Transistor designed for high voltage and high speed switching applications.

Features

Super high VGS(off): VGS(off) = 3.8 to 5.8 V.
Low Crss: Crss = 6.5 pF TYP.
Low QG: QG = 25 nC TYP.
Low on-state resistance: RDS(on) = 0.83 Ω MAX. (VGS = 10 V, ID = 5 A).
