A1615 2SA1615

A1615 Description

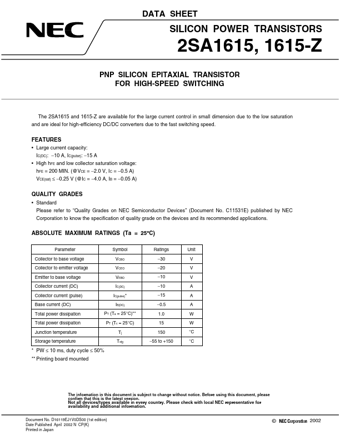

DATA SHEET SILICON POWER TRANSISTORS 2SA1615, 1615-Z PNP SILICON EPITAXIAL TRANSISTOR FOR HIGH-SPEED SWITCHING The 2SA1615 and 1615-Z are available.
of circuits, software and other related information in this document are provided for illustrative purposes in semiconductor product operation and ap.

A1615 Features

* Large current capacity: IC(DC):
* 10 A, IC(pulse):
* 15 A
* High hFE and low collector saturation voltage: hFE = 200 MIN. (@VCE =
* 2.0 V, IC =
* 0.5 A) VCE(sat) ≤
* 0.25 V (@IC =
* 4.0 A, IB =
* 0.05 A) QUALITY GRADES
* Sta

A1615 Applications

* ABSOLUTE MAXIMUM RATINGS (Ta = 25°C) Parameter Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current (DC) Collector current (pulse) Base current (DC) Total power dissipation Total power dissipation Junction temperature Storage temperature Symbol VCBO VCEO

📥 Download Datasheet

Preview of A1615 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
A1615
Manufacturer
NEC
File Size
144.83 KB
Datasheet
A1615_NEC.pdf
Description
2SA1615
