A1988 Datasheet, 2sa1988, NEC

A1988 Features

  • 2sa1988
  • High Voltage VCEO =
  • 200 V
  • DC Current Gain hFE = 70 to 200
  • TO-3P Package 1.0 φ 3.2±0.2 4.7 MAX. 1.5 20.5MAX. 5.0 4 4.5±0.2 1.0±0.2 0.6±0.1 5.4

PDF File Details

Part number:

A1988

Manufacturer:

NEC

File Size:

73.34kb

Download:

📄 Datasheet

Description:

2sa1988. The 2SA1988 is PNP Silicon Power Transistor that designed for audio frequency power amplifier. www.DataSheet4U.com PACKAGE DIMENSION

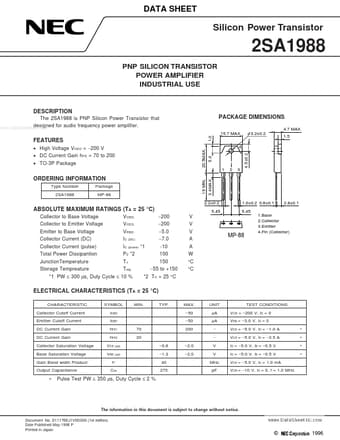

Datasheet Preview: A1988 📥 Download PDF (73.34kb)
Page 2 of A1988 Page 3 of A1988

A1988 Application

  • Applications of a device depend on its quality grade, as indicated below. Customers must check the quality grade of each device before using it in a
