A1980 - 2SA1980

Datasheet Summary

Description

General small signal amplifier

Features

  • Low collector saturation voltage : VCE(sat)=-0.3V(Max. ).
  • Low output capacitance : Cob=4pF(Typ. ).
  • Complementary pair with 2SC5343 Ordering Information Type NO. 2SA1980 Marking A1980 Package Code TO-92 Outline Dimensions 3.45±0.1 4.5±0.1 2.25±0.1 unit : mm 4.5±0.1 0.4±0.02 2.06±0.1 14.0±0.40 1.27 Typ. 2.54 Typ. 1 2 3 1.20±0.1 0.38 PIN Connections 1. Emitter 2. Collector 3. Base KST-9002-002 1 www. DataSheet4U. com 2SA1980 (Ta=25°C) Absolute maximum ratin.

📥 Download Datasheet

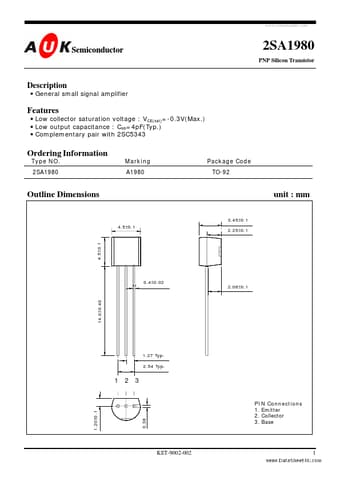

Datasheet preview – A1980

Datasheet Details

Part number A1980
Manufacturer AUK Corporation
File Size 118.62 KB
Description 2SA1980
Datasheet download datasheet A1980 Datasheet
Additional preview pages of the A1980 datasheet.

📁 Similar Datasheet

  • A1981 - 2SA1981 (AUK)
  • A1987 - Silicon PNP Transistor (Toshiba)
  • A1988 - 2SA1988 (NEC)
  • A198S - Asymmetric thyristors (PST)
  • A19-1 - 10 TO 1000 MHz CASCADABLE AMPLIFIER (Tyco)
  • A19-1 - Cascadable Amplifier (MA-COM)
  • A190-3A-00 - Touch-Panel (atouch)
  • A1907 - 2SA1907 (SavantIC)
  • A1908 - 2SA1908 (Sanken electric)
  • A1909 - 2SA1909 (SavantIC)
Other Datasheets by AUK Corporation

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com Semiconductor 2SA1980 PNP Silicon Transistor Description • General small signal amplifier Features • Low collector saturation voltage : VCE(sat)=-0.3V(Max.) • Low output capacitance : Cob=4pF(Typ.) • Complementary pair with 2SC5343 Ordering Information Type NO. 2SA1980 Marking A1980 Package Code TO-92 Outline Dimensions 3.45±0.1 4.5±0.1 2.25±0.1 unit : mm 4.5±0.1 0.4±0.02 2.06±0.1 14.0±0.40 1.27 Typ. 2.54 Typ. 1 2 3 1.20±0.1 0.38 PIN Connections 1. Emitter 2. Collector 3. Base KST-9002-002 1 www.DataSheet4U.
