AC03DGM - (AC03DGM/FGM) 3A MOLD Triac

AC03DGM Description

DATA SHEET THYRISTORS AC03DGM, AC03FGM 3 A MOLD TRIAC The AC03EGM and AC03FGM are fully diffused mold TRIACs with an effective on-current of 3 A.T.
of circuits, software and other related information in this document are provided for illustrative purposes in semiconductor product operation and ap.

AC03DGM Features

* Gate trigger current (mode I, III, and IV) at 12 mA or less is guaranteed.
* This transistor features a small and lightweight package and is easy to handle even on the mounting surface due to its TO202AA dimensions. Processing of lead wires and heatsink (tablet) using jigs is also

AC03DGM Applications

* design is available due to high gate trigger sensitivity and small hold current distribution.
* Employs flame-retardant epoxy resin (UL94V-0). APPLICATIONS Noncontact switches of motor speed control, heater temperature control, lamp light control
* TC test bench-mark Standard weight: 1.4

📥 Download Datasheet

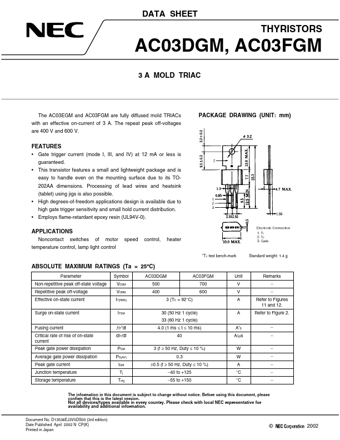

Preview of AC03DGM PDF
