AC03-CS, AC01-CS Axial Cemented Fusible Wirewound Safety Resistors

Vishay

Description

www.vishay.com AC01-CS, AC03-CS, AC05-CS Vishay Draloric Axial Cemented Fusible Leaded Wirewound Safety Resistors .
Operating temperature range Max.

📥 Download Datasheet

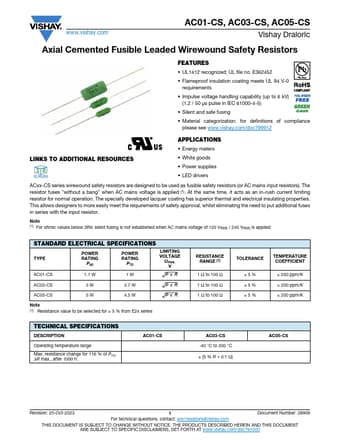

AC03-CS Datasheet Preview — This datasheet PDF includes multiple part numbers: AC03-CS, AC01-CS. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: AC03-CS, AC01-CS
Manufacturer: Vishay ↗
File Size: 156.08 KB
Datasheet: AC01-CS-Vishay.pdf
Description: Axial Cemented Fusible Wirewound Safety Resistors
Note: This datasheet PDF includes multiple part numbers: AC03-CS, AC01-CS.
Please refer to the document for exact specifications by model.

Features

* UL1412 recognized; UL file no. E362452
* Flameproof insulation coating meets UL 94 V-0 requirements
* Impulse voltage handling capability (up to 6 kV) (1.2 / 50 μs pulse in IEC 61000-4-5)
* Silent and safe fusing
* Material categorization: for definitions of

Applications

* Energy meters LINKS TO ADDITIONAL RESOURCES 3D 3D 3D Models
* White goods
* Power supplies
* LED drivers ACxx-CS series wirewound safety resistors are designed to be used as fusible safety resistors (or AC mains input resistors). The resistor fuses “without a ban
