AC10DSMA

10 A RESIN INSULATION TYPE TRIAC

AC10DSMA Features

* ratings and electrical characteristics equal to TO-220AB package TRIAC and a high reliability design. 12 ±0.2 1 2 3

* FEATURES

* Insulation type TRIAC fully covered with resin on the entire case other than electrode leads

* Insulation voltage and conduction equal to conventi

AC10DSMA General Description

The AC10DSMA and AC10FSMA are resin insulation type TRIACs with an effective current of 10 A (TC = 85°C). These products are covered with resin mold on the entire case and are electrically insulated with electrodes, giving them a 17 ±0.2 PACKAGE DRAWING (Unit: mm) 10.5 MAX. 7 ±0.2 4.7 MAX. φ 3.2 ±.

AC10DSMA Datasheet (242.27 KB)

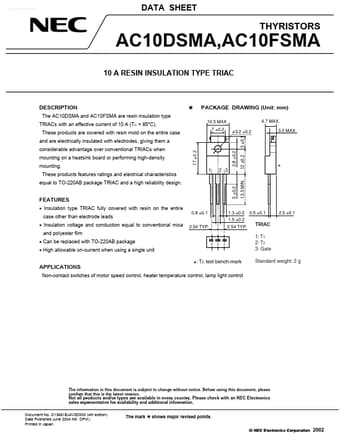

Preview of AC10DSMA PDF

Datasheet Details

Part number:

AC10DSMA

Manufacturer:

NEC

File Size:

242.27 KB

Description:

10 a resin insulation type triac.
