CE1A3Q COMPOUND TRANSISTOR

CE1A3Q Description

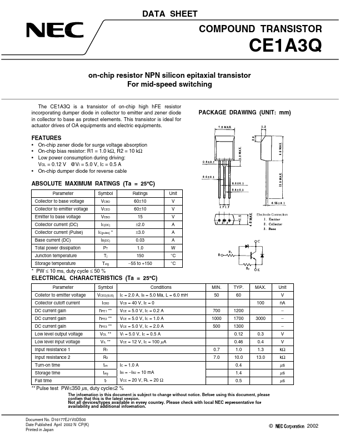

DATA SHEET COMPOUND TRANSISTOR CE1A3Q on-chip resistor NPN silicon epitaxial transistor For mid-speed switching The CE1A3Q is a transistor of on-chi.
of circuits, software and other related information in this document are provided for illustrative purposes in semiconductor product operation and ap.

CE1A3Q Features

* On-chip zener diode for surge voltage absorption
* On-chip bias resistor: R1 = 1.0 kΩ, R2 = 10 kΩ
* Low power consumption during driving: VOL = 0.12 V @VI = 5.0 V, IC = 0.5 A
* On-chip dumper diode for reverse cable ABSOLUTE MAXIMUM RATINGS (Ta = 25°C) Parameter Co

CE1A3Q Applications

* of a semiconductor product depend on its quality grade, as indicated below. Customers must check the quality grade of each semiconductor product before using it in a particular application. "Standard": Computers, office equipment, communications equipment, test and measurement equipment, audio and v
