CE1F3P on-chip resistor NPN silicon epitaxial transistor

CE1F3P Description

'$7$ 6+((7 &203281' 75$16,6725 &()3 RQFKLS UHVLVWRU 131 VLOLFRQ HSLWD[LDO WUDQVLVWRU )RU PLGVSHHG VZLWFKLQJ The CE1F3P is a transistor of on-ch.
of circuits, software and other related information in this document are provided for illustrative purposes in semiconductor product operation and ap.

CE1F3P Features

* On-chip zener diode for surge voltage absorption
* On-chip bias resistor: R1 = 2.2 kΩ, R2 = 10 kΩ
* Low power consumption during driving: VOL = 0.12 V @VI = 5.0 V, IC = 0.5 A
* On-chip dumper diode for reverse cable ABSOLUTE MAXIMUM RATINGS (Ta = 25°C) Parameter Co

CE1F3P Applications

* of a semiconductor product depend on its quality grade, as indicated below. Customers must check the quality grade of each semiconductor product before using it in a particular application. "Standard": Computers, office equipment, communications equipment, test and measurement equipment, audio and v

📥 Download Datasheet

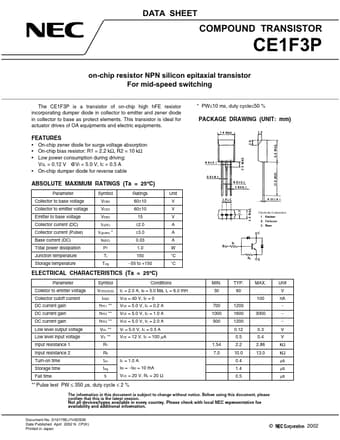

Preview of CE1F3P PDF
