D16312 Datasheet - NEC

UPD16312

D16312 Features

* Multiple display modes (11-segment & 11-digit to 16-segment & 4-digit)

* Key scanning (6 4 matrix)

* Dimming circuit (eight steps)

* High-voltage output (VDD 35 V max).

* LED ports (4 chs., 20 mA max).

* General-purpose input port (4 bits)

D16312 General Description

Input serial data at rising edge of shift clock, starting from the low order bit. Output serial data at the falling edge of the shift clock, starting from low order bit. This is N-ch open-drain output pin. Initializes serial interface at the rising or falling edge of the DOUT Data output 5 STB .

D16312 Datasheet (178.48 KB)

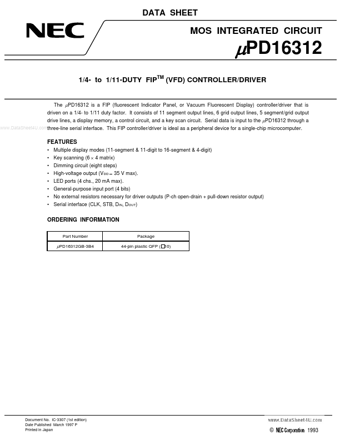

D16312 Datasheet Preview — Preview of D16312 PDF

Datasheet Details

Part number:

D16312

Manufacturer:

NEC

File Size:

178.48 KB

Description:

Upd16312.
DATA SHEET MOS INTEGRATED CIRCUIT PD16312 1/4- to 1/11-DUTY FIPTM (VFD) CONTROLLER/DRIVER The PD16312 is a FIP (fluorescent Indicator Panel, or Va.
