D4701A Datasheet, Upd4701a, NEC

D4701A Features

• Upd4701a
• X, Y 2-axis incremental encoder counter
• Counter input (Schmitt-triggered input) X axis: XA, XB 2-phase signal   4-multiplication count method used Y axis: YA, YB 2

PDF File Details

Part number:

D4701A

Manufacturer:

NEC

File Size:

95.46kb

Download:

📄 Datasheet

Description:

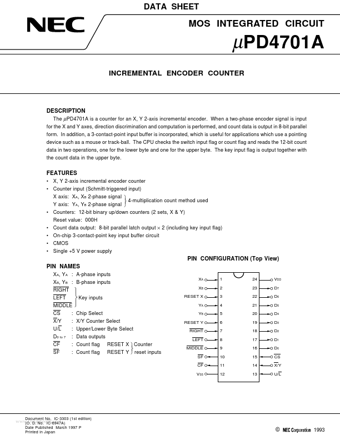

Upd4701a. The µPD4701A is a counter for an X, Y 2-axis incremental encoder. When a two-phase encoder signal is input for the X and Y axes, dire

D4701A Application

• Applications which use a pointing device such as a mouse or track-ball. The CPU checks the switch input flag or count flag and reads the 12-bit coun
