D70F3033A - UPD70F3033A

NEC

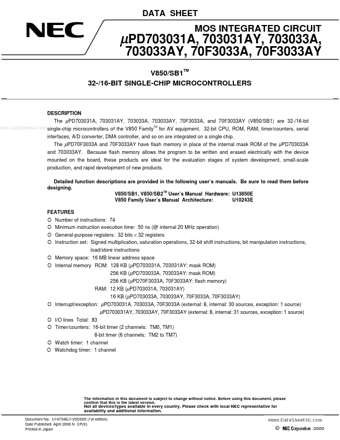

D70F3033A Datasheet Preview — Preview of D70F3033A PDF

Datasheet Details

Part number	D70F3033A
Manufacturer	NEC
File Size	425.17 KB
Description	UPD70F3033A
Datasheet	D70F3033A_NEC.pdf

D70F3033A Product details

Description

The µPD703031A, 703031AY, 703033A, 703033AY, 70F3033A, and 70F3033AY (V850/SB1) are 32-/16-bit www.DataSheet4U.comsingle-chip microcontrollers of the V850 FamilyTM for AV equipment.32-bit CPU, ROM, RAM, timer/counters, serial interfaces, A/D converter, DMA controller, and so on are integrated on a single chip.The µPD70F3033A and 70F3033AY have flash memory in place of the internal mask ROM of the µPD703033A and 703033AY.Because flash memory allows the program to be written and erased electri

Features

{ Number of instructions: 74 { Minimum instruction execution time: 50 ns (@ internal 20 MHz operation) { General-purpose registers: 32 bits × 32 registers { Instruction set: Signed multiplication, saturation operations, 32-bit shift instructions, bit manipulation instructions, load/store instructions { Memory space: 16 MB linear address space { Internal memory ROM: 128 KB (µPD703031A, 703031AY: mask ROM) 256 KB (µPD703033A, 703033AY: mask ROM) 256 KB (µPD70F3033A, 70F3033AY: flash memory) RAM: 1.
