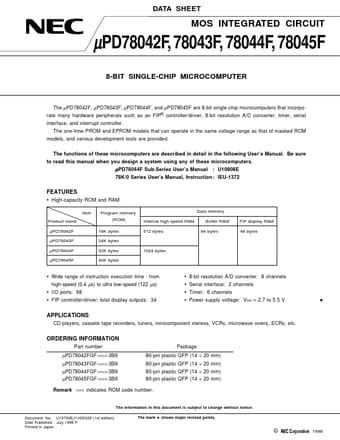

DATA SHEET MOS INTEGRATED CIRCUIT mPD78042F, 78043F, 78044F, 78045F 8-BIT SINGLE-CHIP MICROCOMPUTER The mPD78042F, mPD78043F, mPD78044F, and m PD78045F are 8-bit single-chip microcomputers that incorporate many hardware peripherals such as an FIP® controller/driver, 8-bit resolution A/D converter, timer, serial interface, and interrupt controller. The one-time PROM and EPROM models that can operate in the same voltage range as that of masked ROM models, and various development tools are provi.

D78043F Features

* High-capacity ROM and RAM Item Product name Program memory (ROM) 16K bytes 24K bytes 32K bytes 40K bytes 1024 bytes Data memory Internal high-speed RAM www.DataSheet.net/ Buffer RAM 64 bytes FIP display RAM 48 bytes mPD78042F mPD78043F mPD78044F mPD78045F 512 bytes

* Wide ran
