D78044FGF - UPD78044FGF

Product Overview

NEC

📥 Download Datasheet

D78044FGF UPD78044FGF by NEC - Datasheet Preview — Datasheet preview – D78044FGF

Datasheet Details

Part number	D78044FGF
Manufacturer	NEC
File Size	481.22 KB
Description	UPD78044FGF
Datasheet	D78044FGF Datasheet

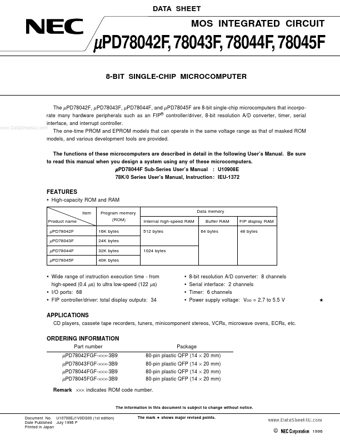

Additional preview pages of the D78044FGF datasheet.

Product details

Features

High-capacity ROM and RAM Item Product name Program memory (ROM) 16K bytes 24K bytes 32K bytes 40K bytes 1024 bytes Data memory Internal high-speed RAM 512 bytes Buffer RAM 64 bytes FIP display RAM 48 bytes mPD78042F mPD78043F mPD78044F mPD78045F.
Wide range of instruction execution time - from high-speed (0.4 ms) to ultra low-speed (122 ms).
I/O ports: 68.
FIP controller/driver: total display outputs: 34.
