D78C10A

UPD78C10A

D78C10A Features

* Abundant 159 types of instructions : 87AD series instruction set, multiplication/division instructions, 16-bit operation instructions

* Instruction cycle : 0.8 µs (at 15 MHz operation)

* On-chip ROM : 4096W × 8 (µPD78C11A), 8192W × 8 (µPD78C12A) Non (µPD78C10A)

* On

D78C10A General Description

The µPD78C11A is a CMOS 8-bit microprocessor which can integrate 16-bit ALU, ROM, RAM, an A/D converter, a multi-function timer/event counter, and a general-purpose serial interface into a single chip, then expand the memory (ROM/RAM) up to 60K bytes externally. The µPD78C10A is a ROM-less product o.

D78C10A Datasheet (3.25 MB)

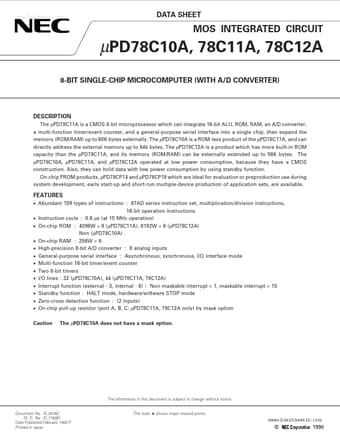

Preview of D78C10A PDF

Datasheet Details

Part number:

D78C10A

Manufacturer:

NEC

File Size:

3.25 MB

Description:

Upd78c10a.
www.DataSheet4U.com DATA SHEET DATA SHEET MOS INTEGRATED CIRCUIT µPD78C10A, 78C11A, 78C12A 8-BIT SINGLE-CHIP MICROCOMPUTER (WITH A/D CONVERTER) DE.
