D78F0034A Description

DATA SHEET www.DataSheet4U.com www.DataSheet4U.com MOS INTEGRATED CIRCUIT µPD78F0034A, 78F0034AY 8-BIT SINGLE-CHIP MICROCONTROLLER .
The µPD78F0034A is a member of the µPD780034A Subseries in the 78K/0 Series, and is equivalent to the µPD780034A but with flash memory in place of in.

D78F0034A Features

* Pin-compatible with mask ROM versions (except VPP pin)
* Flash memory:
* Supply voltage: Note 32 KBNote VDD = 1.8 to 5.5 V
* Internal high-speed RAM: 1,024 bytesNote The flash memory and internal high-speed RAM capacities can be changed with the memory size switchi

📥 Download Datasheet

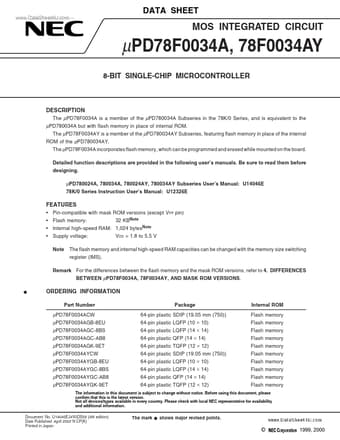

D78F0034A Datasheet Preview — Preview of D78F0034A PDF

Datasheet Details

Part number: D78F0034A
Manufacturer: NEC
File Size: 694.09 KB
Datasheet: D78F0034A_NEC.pdf
Description: 8 Bit Single Chip Microcontroller
