ET2F-B3M1

AUTOMOTIVE RELAY

ET2F-B3M1 Features

* Operating ambient temperature up to +125°C (ET2/ET1 : +85°C) Suitable for motor and solenoid reversible control High performance and productivity by unique structure Flux tight housing APPLICATIONS Motor control Heater control Solenoid control Type ET2F Type ET1F For Proper Use of Miniature Rela

ET2F-B3M1 General Description

The new NEC TOKIN ET2F/ET1F series is PC-board mount type automotive relay suitable for various motor and heater control applications that require a high quality and performance. ET2F is a twin relay type and ET1F is a single relay type. The operate temperature range for ET2F/ET1F series is .

ET2F-B3M1 Datasheet (1.38 MB)

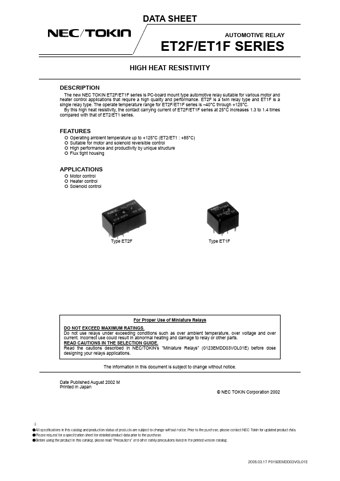

Preview of ET2F-B3M1 PDF

Datasheet Details

Part number:

ET2F-B3M1

Manufacturer:

NEC

File Size:

1.38 MB

Description:

Automotive relay.
