NL10276AC28-01L

36 cm 14.1 inches / 1024 x 768 pixels / Full-color / Multi-scan function / Built-in CRT interface board

NL10276AC28-01L Features

* High Luminance (200 cd/m2. typ.)

* Low reflection

* CRT interface board Auto recognition of input signal: Analog RGB signals, Synchronous signals (Hsync, Vsyn, Composite) Digital control: e.g. Brightness, Display Position Free supply voltage sequence Corresponding to DDCI a

NL10276AC28-01L General Description

NL10276AC28-01L is a TFT (thin film transistor) active matrix color liquid crystal display (LCD) comprising www.DataSheet4U.com amorphous silicon TFT attached to each signal electrode, a driving circuit, a CRT interface board and a backlight. NL10276AC28-01L has a built-in backlight with an inverter.

NL10276AC28-01L Datasheet (315.59 KB)

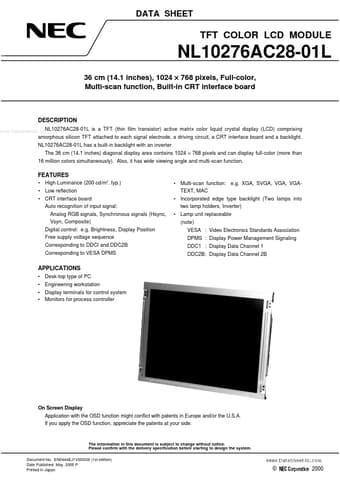

Preview of NL10276AC28-01L PDF

Datasheet Details

Part number:

NL10276AC28-01L

Manufacturer:

NEC

File Size:

315.59 KB

Description:

36 cm 14.1 inches / 1024 x 768 pixels / full-color / multi-scan function / built-in crt interface board.
DATA SHEET TFT COLOR LCD MODULE NL10276AC28-01L 36 cm (14.1 inches), 1024 × 768 pixels, Full-color, Multi-scan function, Built-in CRT interface boar.
