NL10276AC28-02L Datasheet - NEC

36 cm 14.1 inches / 1024 x 768 pixels / Full-color / Ultra-wide viewing angle / Multi-scan function / CRT interface board

NL10276AC28-02L Features

* Ultra-wide viewing angle and low reflection

* CRT interface board Auto recognition of input signal: Analog RGB signals, Synchronous signals (Hsync, Vsyn, Composite) Digital control: e.g. Brightness, Display Position Free supply voltage sequence Corresponding to DDCI and DDC2B Corre

NL10276AC28-02L General Description

NL10276AC28-02L is a TFT (thin film transistor) active matrix color liquid crystal display (LCD) comprising www.DataSheet4U.com amorphous silicon TFT attached to each signal electrode, a driving circuit, a CRT interface board and a backlight. NL10276AC28-02L has a built-in backlight with an inverter.

NL10276AC28-02L Datasheet (283.72 KB)

NL10276AC28-02L Datasheet Preview — Preview of NL10276AC28-02L PDF

Datasheet Details

Part number:

NL10276AC28-02L

Manufacturer:

NEC

File Size:

283.72 KB

Description:

36 cm 14.1 inches / 1024 x 768 pixels / full-color / ultra-wide viewing angle / multi-scan function / crt interface board.

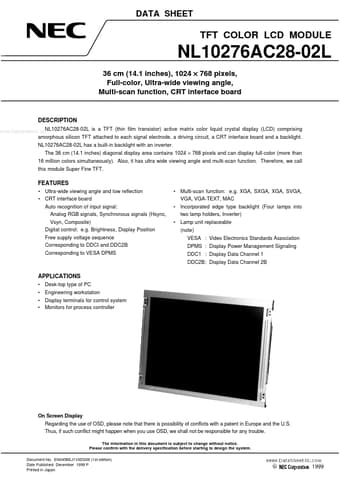

DATA SHEET TFT COLOR LCD MODULE NL10276AC28-02L 36 cm (14.1 inches), 1024 × 768 pixels, Full-color, Ultra-wide viewing angle, Multi-scan function, C.
