NL160120AC27_01A - TFT COLOR LCD MODULE

Name: NL160120AC27_01A
SKU: NL160120AC27_01A-538183

NEC

📥 Download Datasheet

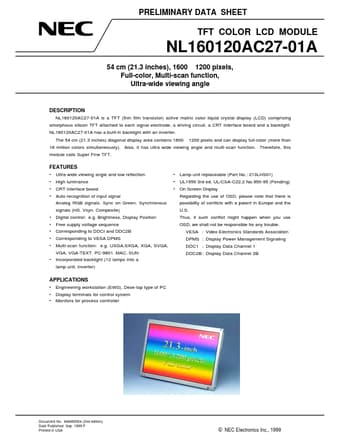

NL160120AC27_01A Datasheet Preview — Preview of NL160120AC27_01A PDF

Datasheet Details

Part number	NL160120AC27_01A
Manufacturer	NEC
File Size	305.23 KB
Description	TFT COLOR LCD MODULE
Datasheet	NL160120AC27_01A_NEC.pdf

NL160120AC27_01A Product details

Description

NL160120AC27-01A is a TFT (thin film transistor) active matrix color liquid crystal display (LCD) comprising amorphous silicon TFT attached to each signal electrode, a driving circuit, a CRT interface board and a backlight.

Features

Ultra-wide viewing angle and low reflection.
High luminance.
CRT interface board.
Auto recognition of input signal Analog RGB signals, Sync on Green, Synchronous signals (HS, Vsyn. Composite).
Digital control: e. g. Brightness, Display Position.
Free supply voltage sequence.
Corresponding to DDCI and DDC2B.
Corresponding to VESA DPMS.
Multi-scan function: e. g. UXGA,SXGA, XGA, SVGA, VGA, VGA-TEXT, PC-9801, MAC, SUN.
