NL6448AC33-18 - TFT COLOR LCD MODULE

Product Overview

NEC

NL6448AC33-18 TFT COLOR LCD MODULE by NEC - Datasheet Preview — Datasheet preview – NL6448AC33-18

Datasheet Details

Part number	NL6448AC33-18
Manufacturer	NEC
File Size	102.39 KB
Description	TFT COLOR LCD MODULE
Datasheet	NL6448AC33-18 Datasheet

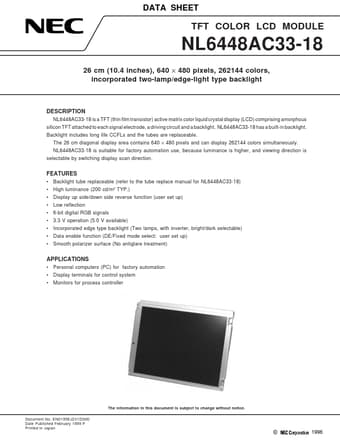

Additional preview pages of the NL6448AC33-18 datasheet.

Product details

Description

NL6448AC33-18 is a TFT (thin film transistor) active matrix color liquid crystal display (LCD) comprising amorphous silicon TFT attached to each signal electrode, a driving circuit and a backlight.NL6448AC33-18 has a built-in backlight.Backlight includes long life CCFLs and the tubes are replaceable.The 26 cm diagonal display area contains 640 × 480 pixels and can display 262144 colors simultaneously.NL6448AC33-18 is suitable for factory automation use, because luminance is higher, and viewi

Features

Backlight tube replaceable (refer to the tube replace manual for NL6448AC33-18).
High luminance (200 cd/m2 TYP. ).
Display up side/down side reverse function (user set up).
Low reflection.
6-bit digital RGB signals.
3.3 V operation (5.0 V available).
Incorporated edge type backlight (Two lamps, with inverter, bright/dark selectable).
Data enable function (DE/Fixed mode select: user set up).
Smooth polarizer surface.
