NL6448AC33-27G - TFT COLOR LCD MODULE

Product Overview

NEC

NL6448AC33-27G TFT COLOR LCD MODULE by NEC - Datasheet Preview — Datasheet preview – NL6448AC33-27G

Datasheet Details

Part number	NL6448AC33-27G
Manufacturer	NEC
File Size	375.98 KB
Description	TFT COLOR LCD MODULE
Datasheet	NL6448AC33-27G Datasheet

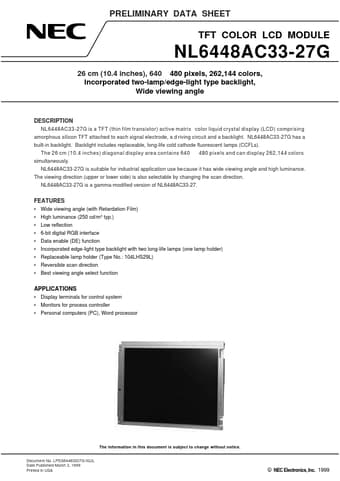

Additional preview pages of the NL6448AC33-27G datasheet.

Product details

Description

NL6448AC33-27G is a TFT (thin film transistor) active matrix color liquid crystal display (LCD) comprising amorphous silicon TFT attached to each signal electrode, a d riving circuit and a backlight.NL6448AC33-27G has a built-in backlight.Backlight includes replaceable, long-life cold cathode fluorescent lamps (CCFLs).The 26 cm (10.4 inches) diagonal display area contains 640 ´ 480 pixels and can display 262,144 colors simultaneously.NL6448AC33-27G is suitable for industrial application use

Features

Wide viewing angle (with Retardation Film).
High luminance (250 cd/m2 typ. ).
Low reflection.
6-bit digital RGB interface.
Data enable (DE) function.
Incorporated edge-light type backlight with two long-life lamps (one lamp holder).
Replaceable lamp holder (Type No. : 104LHS29L).
Reversible scan direction.
Best viewing angle select function.
