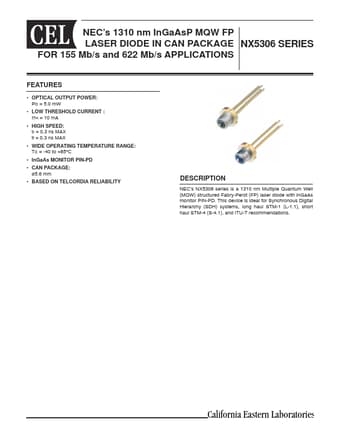

NX5306EHNX5306EK Datasheet - NEC

LASER DIODE

NX5306EHNX5306EK Features

* OPTICAL OUTPUT POWER: PO = 5.0 mW

* LOW THRESHOLD CURRENT : ITH = 10 mA

* HIGH SPEED: tr = 0.3 ns MAX tf = 0.3 ns MAX

* WIDE OPERATING TEMPERATURE RANGE: TC = -40 to +85°C

* InGaAs MONITOR PIN-PD

* CAN PACKAGE: ø5.6 mm

* BASED ON TELCORDIA RE

NX5306EHNX5306EK General Description

NEC’s NX5306 series is a 1310 nm Multiple Quantum Well (MQW) structured Fabry-Perot (FP) laser diode with InGaAs monitor PIN-PD. This device is ideal for Synchronous Digital Hierarchy (SDH) systems, long haul STM-1 (L-1.1), short haul STM-4 (S-4.1), and ITU-T recommendations. California Eastern Lab.

NX5306EHNX5306EK Datasheet (230.36 KB)
