NX5321 - LASER DIODE

NX5321 Description

DATA SHEET www.DataSheet4U.com LASER DIODE NX5321 Series 1 310 nm FOR 156 Mb/s, 622 Mb/s, 1.25 Gb/s, FTTH InGaAsP MQW-FP LASER DIODE .
The NX5321 Series is a 1 310 nm Multiple Quantum Well (MQW) structured Fabry-Perot (FP) laser diode with InGaAs monitor PIN-PD.

NX5321 Features

* Optical output power
* Low threshold current
* Differential efficiency
* InGaAs monitor PIN-PD
* CAN package
* Fiber coupling point Po = 5.0 mW lth = 7 mA ηd = 0.3 W/A
* Wide operating temperature range TC =
* 40 to +85°C φ 5.6 mm 5

NX5321 Applications

* STM-1 (I-1, S-1.1), STM-4 (I-4, S-4.1), ITU-T recommendations

📥 Download Datasheet

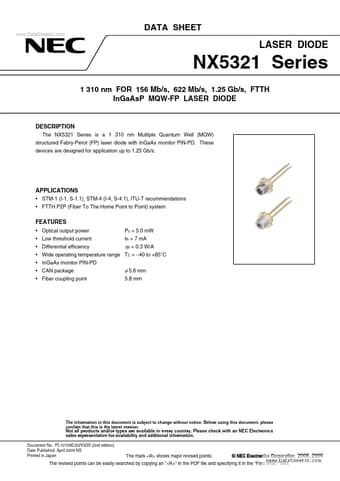

Preview of NX5321 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
NX5321
Manufacturer
NEC
File Size
115.02 KB
Datasheet
NX5321_NEC.pdf
Description
LASER DIODE
