NX5306EHNX5306EK, LASER DIODE

NEC’s 1310 nm InGaAsP MQW FP LASER DIODE IN CAN PACKAGE NX5306 SERIES FOR 155 Mb/s and 622 Mb/s APPLICATIONS .
NEC’s NX5306 series is a 1310 nm Multiple Quantum Well (MQW) structured Fabry-Perot (FP) laser diode with InGaAs monitor PIN-PD.

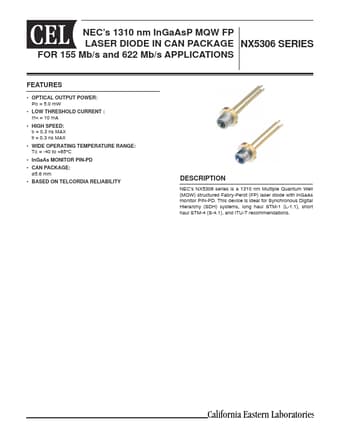

datasheet Preview Page 1 from Datasheet4u.com

NX5306EHNX5306EK_NEC.pdf

NX5306EHNX5306EK Datasheet Preview — Preview of NX5306EHNX5306EK PDF

Datasheet Details

Part number:

NX5306EHNX5306EK

Manufacturer:

NEC

File Size:

230.36 KB

Description:

LASER DIODE

Features

* OPTICAL OUTPUT POWER: PO = 5.0 mW
* LOW THRESHOLD CURRENT : ITH = 10 mA
* HIGH SPEED: tr = 0.3 ns MAX tf = 0.3 ns MAX
* WIDE OPERATING TEMPERATURE RANGE: TC = -40 to +85°C
* InGaAs MONITOR PIN-PD
* CAN PACKAGE: ø5.6 mm
* BASED ON TELCORDIA RE
