DATA SHEET SILICON TRANSISTOR ARRAY µPA1436A NPN SILICON POWER TRANSISTOR ARRAY HIGH SPEED SWITCHING USE (DARLINGTON TRANSISTOR) INDUSTRIAL USE DE.
The µPA1436A is NPN silicon epitaxial Darlington Power Transistor Array that built in 4 circuits designed www.

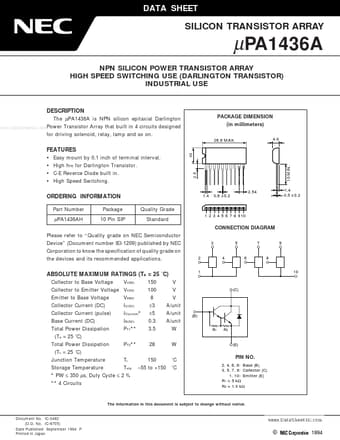

datasheet Preview Page 1 from Datasheet4u.com

PA1436AH_NEC.pdf

PA1436AH Datasheet Preview — Preview of PA1436AH PDF

Datasheet Details

Part number:

PA1436AH

Manufacturer:

NEC

File Size:

94.85 KB

Description:

UPA1436AH

Features

* Easy mount by 0.1 inch of terminal interval. High hFE for Darlington Transistor. High Speed Switching. C-E Reverce Diode built in. 10 2.54 ORDERING INFORMATION Part Number Package 10 Pin SIP Quality Grade Standard 1.4 0.6 ±0.2 1.4 0.5 ±0.2 µPA1436AH

Applications

* 2 1 4 6 8 10 3 5 7 9 ABSOLUTE MAXIMUM RATINGS (Ta = 25 ˚C) Collector to Base Voltage Emitter to Base Voltage Collector Current (DC) Collector Current (pulse) Base Current (DC) Total Power Dissipation (Ta = 25 ˚C) Total Power Dissipation (Tc = 25 ˚C) Junction Temperature Storage Temperature
