PS2561D-1, DIP PHOTOCOUPLER

PRELIMINARY DATA SHEET www.DataSheet4U.com PHOTOCOUPLER PS2561D-1,PS2561DL-1 PS2561DL1-1,PS2561DL2-1 DIP PHOTOCOUPLER OPERATING AMBIENT TEMPERATURE .
The PS2561D-1 is an optically coupled isolator containing a GaAs light emitting diode and an NPN silicon phototransistor.

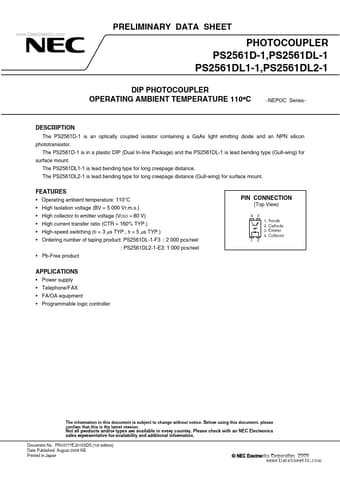

datasheet Preview Page 1 from Datasheet4u.com

PS2561D-1_NEC.pdf

PS2561D-1 Datasheet Preview — Preview of PS2561D-1 PDF

Datasheet Details

Part number:

PS2561D-1

Manufacturer:

NEC

File Size:

160.59 KB

Description:

DIP PHOTOCOUPLER

Features

* Operating ambient temperature: 110°C
* High Isolation voltage (BV = 5 000 Vr. m. s. )
* High collector to emitter voltage (VCEO = 80 V)
* High current transfer ratio (CTR = 160% TYP. )
* High-speed switching (tr = 3 μs TYP. , tf = 5 μs TYP. )
* Ordering nu

Applications

* Power supply
* Telephone/FAX.
* FA/OA equipment
* Programmable logic controller The information in this document is subject to change without notice. Before using this document, please confirm that this is the latest version. Not all products and/or types are avai
