PS2702-4

HIGH ISOLATION VOLTAGE DARLINGTON TRANSISTOR

PS2702-4 Features

* High current transfer ratio (CTR = 2 000 % TYP.)

* High isolation voltage (BV = 3 750 Vr.m.s.)

* Small and thin (SOP) package

* High-speed switching (tr, tf = 200 µs TYP.)

* Ordering number of taping product (1-ch only): PS2702-1-E3, E4, F3, F4

* UL

PS2702-4 General Description

The PS2702-1, PS2702-2, PS2702-4, are optically coupled isolators containing a GaAs light emitting diode and an NPN silicon darlington-connected phototransistor. Each is mounted in a plastic SOP (Small Out-line Package) for high density applications. This package has shield effect to cut off ambient.

PS2702-4 Datasheet (113.98 KB)

Preview of PS2702-4 PDF

Datasheet Details

Part number:

PS2702-4

Manufacturer:

NEC

File Size:

113.98 KB

Description:

High isolation voltage darlington transistor.

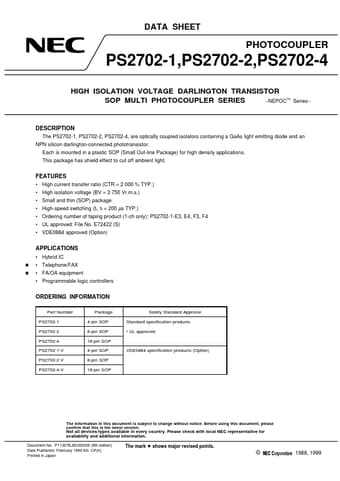

DATA SHEET PHOTOCOUPLER PS2702-1,PS2702-2,PS2702-4 HIGH ISOLATION VOLTAGE DARLINGTON TRANSISTOR
