PS2701A-1

HIGH ISOLATION VOLTAGE SOP PHOTOCOUPLER

PS2701A-1 Features

* High isolation voltage (BV = 3 750 Vr.m.s.)

* SOP (Small Outline Package) type

* Ordering number of taping product: PS2701A-1-F3: 3 500 pcs/reel

* Pb-Free product

* Safety standards

* UL approved: UL1577, Single protection

* CSA approved: CAN/CSA-C22.2 No. 62368-1, Basi

PS2701A-1 General Description

The PS2701A-1 is an optically coupled isolator containing a GaAs light emitting diode and an NPN silicon phototransistor to realize an excellent cost performance. This package is SOP (Small Outline Package) type and has shield effect to cut off ambient light. It is designed for high density mounting.

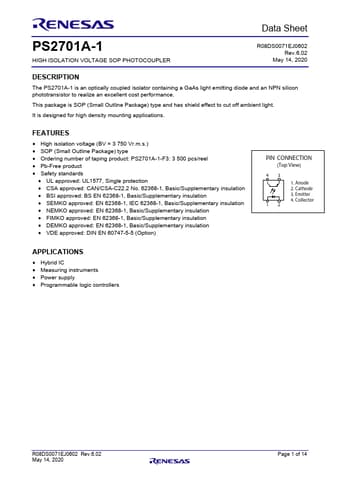

PS2701A-1 Datasheet (5.11 MB)

Preview of PS2701A-1 PDF

Datasheet Details

Part number:

PS2701A-1

Manufacturer:

Renesas ↗

File Size:

5.11 MB

Description:

High isolation voltage sop photocoupler.
