UPD161623 - 528 OUTPUT TFT-LCD SOURCE DRIVER

UPD161623 Description

DATA SHEET MOS INTEGRATED CIRCUIT µ PD161623 528 OUTPUT TFT-LCD SOURCE DRIVER WITH RAM .
The µ PD161623 is a TFT-LCD source driver that includes display RAM.

UPD161623 Features

* TFT-LCD driver with on-chip display RAM
* I/O circuit power supply voltage: 1.7 to 3.6 V
* Logic power supply voltage: 2.5 to 3.6 V
* Driver power supply voltage: 4.3 to 5.5 V
* Display RAM: 176 x 18 x 240 bits
* Driver outputs: 528 output

📥 Download Datasheet

Preview of UPD161623 PDF

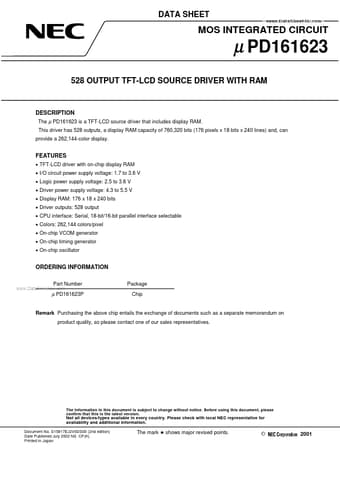

datasheet Preview Page 2 datasheet Preview Page 3
