UPD16310 - HIGH VOLTAGE CMOS DRIVER

UPD16310 Description

MOS INTEGRATED CIRCUIT µPD16310 HIGH VOLTAGE CMOS DRIVER FOR PDP, EL, VFD .
µPD16310 is high voltage driver for PDP, EL or VFD graphic panel structured by CMOS process.

UPD16310 Features

* 80 V Output Voltage Swing Capability
* 50 mA Output Sink and Source Current Capability
* 40 bit Shift-register and Latch
* High Speed Serial DATA Transferring (fmax. = 20 MHz
* Low Standby Current 100 µA MIN. ) ORDERING INFORMATION Part Number Package 80-pin

UPD16310 Applications

* of a device depend on its quality grade, as indicated below. Customers must check the quality grade of each device before using it in a particular application. Standard: Computers, office equipment, communications equipment, test and measurement equipment, audio and visual equipment, home electronic

📥 Download Datasheet

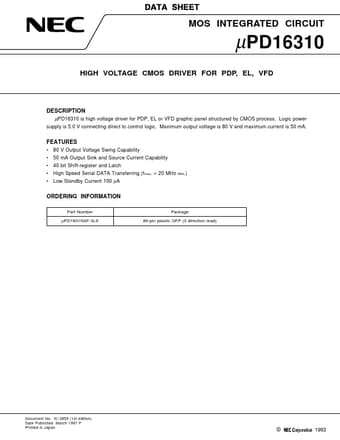

Preview of UPD16310 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
UPD16310
Manufacturer
NEC
File Size
61.86 KB
Datasheet
UPD16310_NEC.pdf
Description
HIGH VOLTAGE CMOS DRIVER
