UPD16311

1/8- to 1/16-DUTY FIPTM VFD CONTROLLER/DRIVER

UPD16311 Features

* Many display modes (12-segment & 16-digit to 20-segment & 8-digit)

* Key scanning (12  4 matrices)

* Dimming circuit (eight steps)

* High-voltage output (VDD 35 V max).

* LED ports (5 chs., 20 mA max).

* General-purpose input port (4 bits)

UPD16311 General Description

Inputs serial data at rising edge of shift clock, starting from lower bit. Outputs serial data at falling edge of shift clock, starting from lower bit. This is N-ch open-drain output pin. Initializes serial interface at rising or falling edge to make 5 DOUT Data output 9 STB Strobe PD16311 w.

UPD16311 Datasheet (167.39 KB)

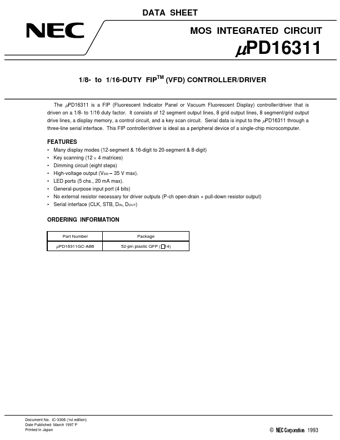

Preview of UPD16311 PDF

Datasheet Details

Part number:

UPD16311

Manufacturer:

NEC

File Size:

167.39 KB

Description:

1/8- to 1/16-duty fiptm vfd controller/driver.
DATA SHEET SHEET DATA MOS INTEGRATED CIRCUIT PD16311 1/8- to 1/16-DUTY FIPTM (VFD) CONTROLLER/DRIVER The PD16311 is a FIP (Fluorescent Indicator P.
