UPD16520A Datasheet, Driver, NEC

UPD16520A Features

  • Driver
  • CCD vertical register driver: 10 channels (3-level: 6 channels, 2-level: 4 channels)
  • VOD shutter driver: 1 channel
  • High withstanding voltage: 33 V MAX.

PDF File Details

Part number:

UPD16520A

Manufacturer:

NEC

File Size:

250.40kb

Download:

📄 Datasheet

Description:

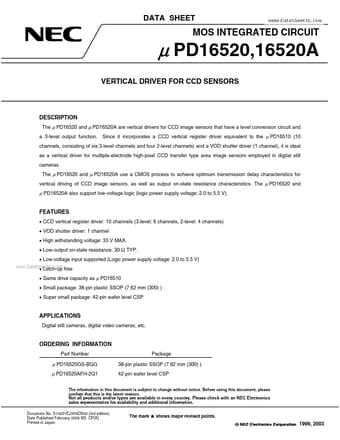

Vertical driver. The µ PD16520 and µ PD16520A are vertical drivers for CCD image sensors that have a level conversion circuit and a 3-level output fun

Datasheet Preview: UPD16520A 📥 Download PDF (250.40kb)
Page 2 of UPD16520A Page 3 of UPD16520A

UPD16520A Application

  • Applications Digital still cameras, digital video cameras, etc. ORDERING INFORMATION Part Number Package 38-pin plastic SSOP (7.62 mm (300) ) 42-pi
