UPD16661A Datasheet, Driver, NEC

UPD16661A Features

  • Driver
  • Display RAM incorporated : 160 × 240 × 2 bits
  • Logic voltage : 3.0 to 3.6 V
  • Duty : 1/240
  • Output count : 160 outputs
  • Capable of gray scal

PDF File Details

Part number:

UPD16661A

Manufacturer:

NEC

File Size:

187.80kb

Download:

📄 Datasheet

Description:

160-output lcd column segment driver. 5 µPD16661A Address map image diagram (Example of VGA-size configuration) Column direction specified with A7 to A0 Y1 Y160 Line di

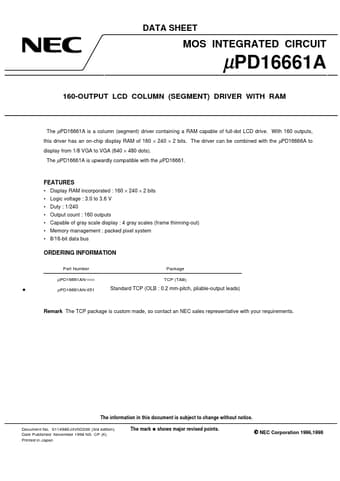

Datasheet Preview: UPD16661A 📥 Download PDF (187.80kb)
