UPD2308A - FULLY DECODED 8K-BIT MASK PROGRAMMABLE READ ONLY MEMORY

NEe Microcomputers, Inc.

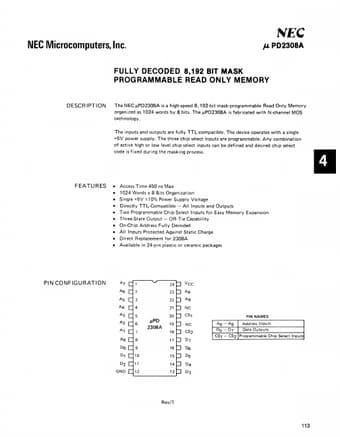

NEe JL PD2308A FULLY DECODED 8,192 BIT MASK PROGRAMMABLE READ ONLY MEMORY DESCR IPTION The NECJ,lPD2308A is a high-speed 8, 192-bit mask-programmable Read Only Memory organized as 1024 words by 8 bits_ The J,lPD2308A is fabricated with N-channel MOS tech no logy.

The inputs and outputs are fully TTL-compatible_ The device operates with a single +5V power supply.

The three chip select inputs are programmable.

Any combination of active high or low level chip select in
