UPD23128 Datasheet - NEC

UPD23128 FULLY DECODED 128K-BIT MASK PROGRAMMABLE READ ONLY MEMORY

NEe NEe Microcomputers, Inc. }LPD23128 ~rn~[~~~~ffirnW FULLY DECODED 128K BIT MASK PROGRAMMABLE READ ONLY MEMORY OESCR I PTION The NEC IlPD23128 is a high speed 128K bit mask programmable Read Only Memory organized as 16,384 words by 8 bits. The IlPD23128 is fabricated with N channel MOS technology. The inputs and outputs are fully TTL compatible. This device operates with a single +5V power supply. The chip select input is programmable. An active high or low level chip select input ca.

UPD23128-NEC.pdf

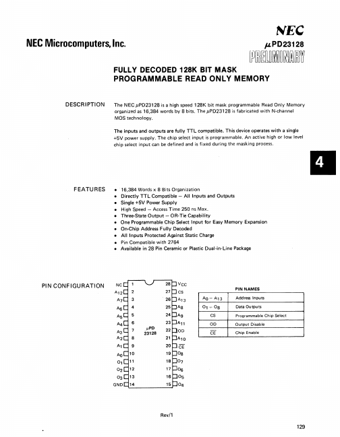

Preview of UPD23128 PDF
UPD23128 Datasheet Preview Page 2 UPD23128 Datasheet Preview Page 3

Datasheet Details

Part number:

UPD23128

Manufacturer:

NEC

File Size:

167.90 KB

Description:

Fully decoded 128k-bit mask programmable read only memory.
