UPD23C16380, UPD23C16340 - (UPD23C16340 / UPD23C16380) 16M-BIT MASK-PROGRAMMABLE ROM

UPD23C16380 Description

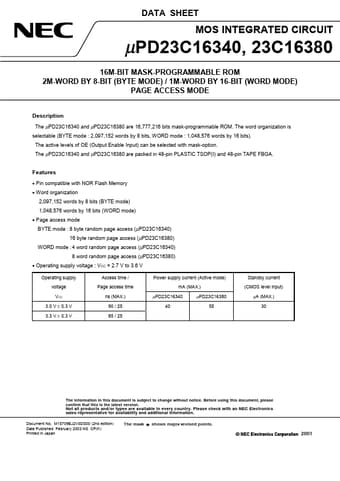

DATA SHEET MOS INTEGRATED CIRCUIT µPD23C16340, 23C16380 16M-BIT MASK-PROGRAMMABLE ROM 2M-WORD BY 8-BIT (BYTE MODE) / 1M-WORD BY 16-BIT (WORD MODE) P.
The µPD23C16340 and µPD23C16380 are 16,777,216 bits mask-programmable ROM.

UPD23C16380 Features

* Pin compatible with NOR Flash Memory
* Word organization 2,097,152 words by 8 bits (BYTE mode) 1,048,576 words by 16 bits (WORD mode)
* Page access mode BYTE mode : 8 byte random page access (µPD23C16340) 16 byte random page access (µPD23C16380) WORD mode : 4 word random pa

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: UPD23C16380, UPD23C16340. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
UPD23C16380, UPD23C16340
Manufacturer
NEC
File Size
257.57 KB
Datasheet
UPD23C16340_NEC.pdf
Description
(UPD23C16340 / UPD23C16380) 16M-BIT MASK-PROGRAMMABLE ROM
Note
This datasheet PDF includes multiple part numbers: UPD23C16380, UPD23C16340.
Please refer to the document for exact specifications by model.
