UPD411A-1 4096-BIT DYNAMIC RAMS

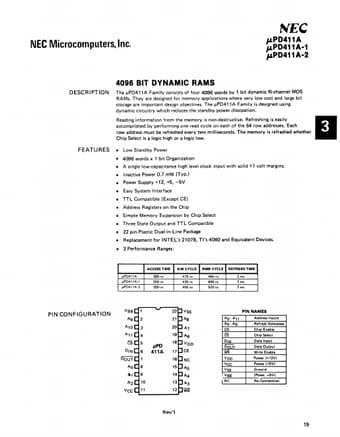

NEe Microcomputers, Inc. NEe Jl.PD411A Jl.PD411A-1 Jl.PD411A-2 DESCR IPTION 4096 BIT DYNAMIC RAMS The ,uPD411A Famify consists of four 4096 words by 1 bit dynamic N-channel MOS RAMs. They are designed for memory applications where very low cost and large bit storage are important design objectives. The ,uPD411 A Family is designed using dynamic circuitry which reduces the standby power dissipation. Reading information from the memory is non destructive. Refreshing is easily II accompl.

UPD411A-1 Features

* Low Standby Power

* 4096 words x 1 bit Organization

* A single low

* capacitance high level clock input with solid ±1 volt margins.

* Inactive Power 0.7 mW (Typ.)

* Power Supply +12, +5, -5V

* Easy System Interface

* TTL Compatible (Except

UPD411A-NEC.pdf

UPD411A-1 Datasheet Preview — This datasheet PDF includes multiple part numbers: UPD411A-1, UPD411A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

UPD411A-1, UPD411A

Manufacturer:

NEC

File Size:

418.07 KB

Description:

4096-bit dynamic rams.

Note:

This datasheet PDF includes multiple part numbers: UPD411A-1, UPD411A.
Please refer to the document for exact specifications by model.
